5.1 NiLearn fMRI Basic Analysis

Analysis Overview

This tutorial implements the standard 3-level fMRI analysis hierarchy:

Run-level (1st level): GLM for each individual run → COPEs and VARCOPEs
Subject-level (fixed-effects): Combine runs within subjects → Fixed-effects COPEs
Group-level (2nd level/random-effects): Model population using subject-level COPEs → Group statistics

Key principle: We propagate effect sizes (COPEs), not standardized statistics (z-maps), up the hierarchy. This preserves effect magnitudes and allows proper random-effects modeling across subjects.

0 Prerequisites

Requirement	Why you need it
Python ≥ 3.9 with nilearn 0.12+, numpy, pandas, scipy, nibabel, joblib	Core libraries
fMRIPrep-pre-processed data (BIDS derivatives)	Gives you: _desc-preproc_bold.nii.gz, _desc-brain_mask.nii.gz, _events.tsv, _confounds_timeseries.tsv
An MNI brain mask (e.g. MNI152_T1_2mm_brain_mask.nii.gz)	For group-level masking

Install everything (one-off):

pip install nilearn nibabel scipy pandas joblib

1 Per-run first-level GLM

import os, glob, pandas as pd
from nilearn.glm.first_level import FirstLevelModel

proj_dir    = '/path/to/dataset'
results_dir = '/path/to/level1_nilearn'
subjects    = sorted([d.split('-')[1] for d in glob.glob(f'{proj_dir}/sub-*')])
runs        = ['1', '2']
contrasts   = {
    'Congruent'   : 'congruent',
    'Incongruent' : 'incongruent',
    'Incongr>Cong': 'incongruent - congruent'
}
motion_cols = ['rot_x','rot_y','rot_z','trans_x','trans_y','trans_z']

for sub in subjects:
    for run in runs:
        # ----- file paths ---------------------------------------------------
        func   = f'{proj_dir}/derivatives/fmriprep/sub-{sub}/func/' \
                 f'sub-{sub}_task-flanker_run-{run}_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz'
        mask   = func.replace('preproc_bold', 'brain_mask')
        events = f'{proj_dir}/sub-{sub}/func/' \
                 f'sub-{sub}_task-flanker_run-{run}_events.tsv'
        confounds_tsv = f'{proj_dir}/derivatives/fmriprep/sub-{sub}/func/' \
                        f'sub-{sub}_task-flanker_run-{run}_desc-confounds_timeseries.tsv'

        events_df    = pd.read_csv(events, sep='\t')
        confounds_df = pd.read_csv(confounds_tsv, sep='\t')[motion_cols]

        # ----- model --------------------------------------------------------
        model = FirstLevelModel(
            t_r=2.0, smoothing_fwhm=6.0, mask_img=mask,
            drift_model='cosine', high_pass=1/128, noise_model='ar1'
        ).fit(func, events=events_df, confounds=confounds_df)

        out_dir = f'{results_dir}/sub-{sub}/run-{run}'
        os.makedirs(out_dir, exist_ok=True)

        for name, expr in contrasts.items():
            model.compute_contrast(expr, output_type='effect_size'   ).to_filename(f'{out_dir}/{name}_cope.nii.gz')
            model.compute_contrast(expr, output_type='effect_variance').to_filename(f'{out_dir}/{name}_varcope.nii.gz')
            model.compute_contrast(expr, output_type='z_score'       ).to_filename(f'{out_dir}/{name}_zmap.nii.gz')

What happened?

Design matrix construction: Events are convolved with HRF, combined with motion regressors
Model fitting: One call to fit() performs design-matrix creation, HRF-convolution, and GLS estimation
Contrast computation: For each contrast, we compute:
- COPE (effect_size): The contrast estimate (c’β) - this is what we need for group analysis
- VARCOPE (effect_variance): The variance of the contrast estimate - needed for fixed-effects
- Z-map (z_score): Standardized statistic for this run only (COPE/sqrt(VARCOPE))

2 Within-subject fixed-effects (combine runs)

from nilearn.glm import compute_fixed_effects

subject_copes = {}    # {sub: {contrast: fixed-effects cope img}}

for sub in subjects:
    subject_copes[sub] = {}
    for c in contrasts:
        copes   = [f'{results_dir}/sub-{sub}/run-{r}/{c}_cope.nii.gz'    for r in runs]
        varcps  = [f'{results_dir}/sub-{sub}/run-{r}/{c}_varcope.nii.gz' for r in runs]

        fx_cope, fx_var, _, fx_z = compute_fixed_effects(
            copes, varcps, precision_weighted=True, return_z_score=True
        )

        # Save the fixed-effects contrast estimate (effect size) for group analysis
        cope_fout = f'{results_dir}/sub-{sub}/{c}_fixed_cope.nii.gz'
        fx_cope.to_filename(cope_fout)
        subject_copes[sub][c] = cope_fout

        # Also save z-map and variance for completeness/diagnostic purposes
        fx_z.to_filename(f'{results_dir}/sub-{sub}/{c}_fixed_zmap.nii.gz')
        fx_var.to_filename(f'{results_dir}/sub-{sub}/{c}_fixed_varcope.nii.gz')

What happened?

compute_fixed_effects does an inverse-variance weighted average of runs
Key point: We save the fixed-effects contrast estimates (COPEs) for group analysis, not z-maps
Z-maps represent standardized effects specific to each subject’s noise level and are not appropriate for group-level random-effects analysis

3 Group (second-level) random-effects

from nilearn.glm.second_level import SecondLevelModel
import pandas as pd

group_dir = f'{results_dir}/group'
os.makedirs(group_dir, exist_ok=True)

for c in contrasts:
    # Use contrast estimates (effect sizes), NOT z-maps, for group analysis
    inputs = [subject_copes[sub][c] for sub in subjects]
    design = pd.DataFrame({'intercept': [1]*len(inputs)})

    model  = SecondLevelModel(smoothing_fwhm=6.0, mask_img='MNI152_T1_2mm_brain_mask.nii.gz')
    model  = model.fit(inputs, design)

    # Generate group-level statistics
    cope   = model.compute_contrast('intercept', output_type='effect_size')
    zmap   = model.compute_contrast('intercept', output_type='z_score')
    tmap   = model.compute_contrast('intercept', output_type='stat')

    # Save outputs
    cope.to_filename(f'{group_dir}/{c}_group_cope.nii.gz')
    zmap_fn= f'{group_dir}/{c}_group_zmap.nii.gz'
    zmap.to_filename(zmap_fn)
    tmap.to_filename(f'{group_dir}/{c}_group_tmap.nii.gz')

Why use contrast estimates (COPEs) instead of z-maps?

Random-effects analysis requires effect sizes that can be averaged across subjects
Z-maps are standardized by each subject’s individual error variance - they don’t preserve the actual magnitude of effects
COPEs represent the actual c’β (contrast times beta) values that can be meaningfully compared across subjects

4 Cluster-level inference + table

from nilearn.glm import cluster_level_inference
from nilearn.reporting import get_clusters_table
from scipy.stats import norm

z_thresh  = norm.isf(0.001)                        # voxel p<0.001
zmap_file = f'{group_dir}/Incongr>Cong_group_zmap.nii.gz'

# A. cluster FWE p<0.05
clusters_img = cluster_level_inference(
    zmap_file, mask_img='MNI152_T1_2mm_brain_mask.nii.gz',
    threshold=z_thresh, alpha=0.05
)
clusters_img.to_filename(f'{group_dir}/Incongr>Cong_clusterFWE_zmap.nii.gz')

# B. cluster table (≥20 vox @ voxel p<0.001)
table = get_clusters_table(zmap_file, stat_threshold=z_thresh, cluster_threshold=20)
print(table.head())

5 Visualisation

from nilearn import plotting
from nilearn.image import index_img
from nilearn.glm.thresholding import threshold_stats_img

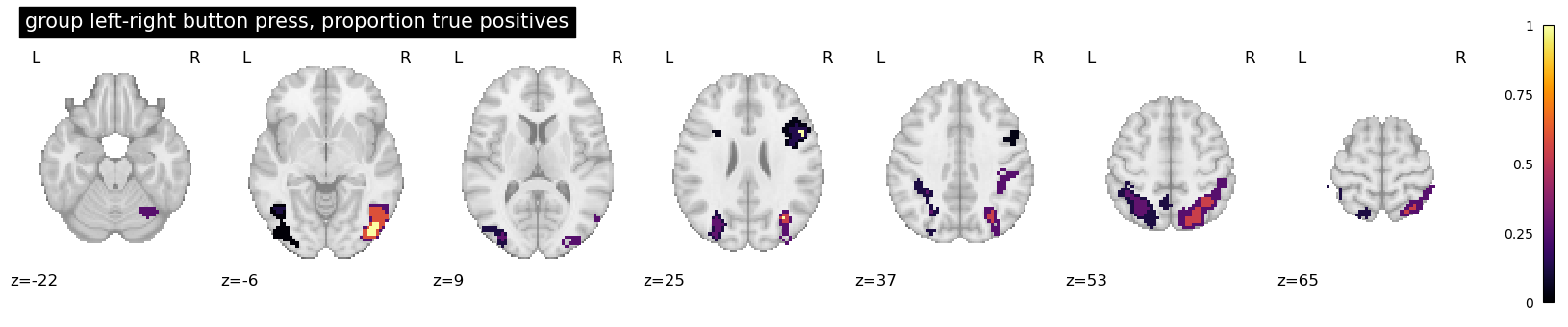

plotting.plot_stat_map(
	clusters_img,
	threshold=0.0, display_mode="z", vmax=1,
	cmap="inferno",
	title="group left-right button press, proportion true positives",
)

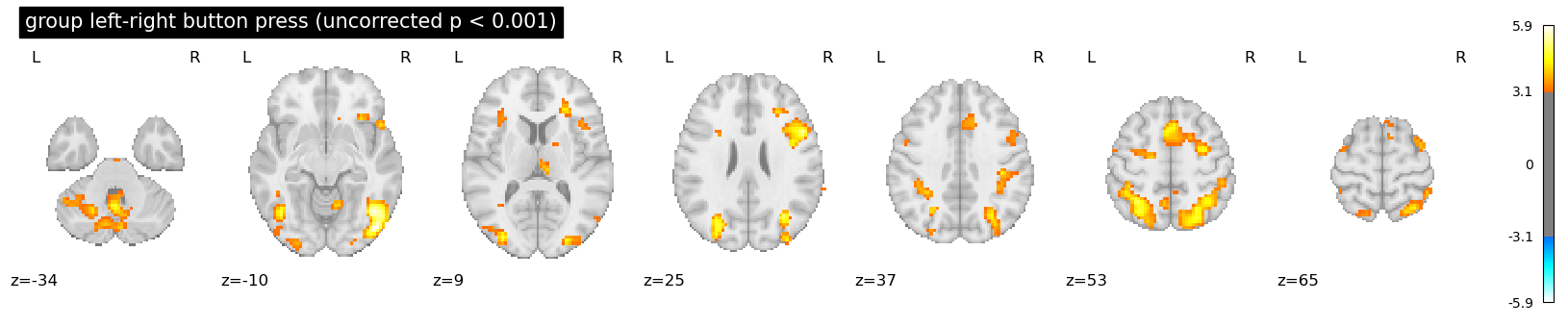

plotting.plot_stat_map(
	zmap_file,
	threshold=z_thresh_uncorr,
	display_mode="z",
	title="group left-right button press (uncorrected p < 0.001)",
)

6 Parallelising (optional)

from joblib import Parallel, delayed
Parallel(n_jobs=6)(
    delayed(process_run)(sub, run, ...)  # wrap the first-level code in a function
    for sub in subjects for run in runs
)

7 Summary

Step	Nilearn function(s)	What it replaces in FSL/SPM/AFNI
1	FirstLevelModel	FEAT (FSL), 3dDeconvolve (AFNI), SPM first-level
2	compute_fixed_effects	FEAT “higher-level” fixed-effects
3	SecondLevelModel	FLAME, 3dttest++, SPM second-level
4	cluster_level_inference, get_clusters_table	cluster, randomise, 3dClustSim
5	plot_glass_brain, view_img_on_surf	FSLeyes, AFNI viewer, SPM GUI
